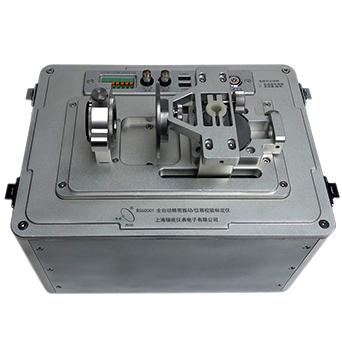

RS60001 instrument has six functions:
1. Displacement verification and calibration: Check and calibrate the static linear characteristics of eddy current sensor; Sensitivity characteristics; Displacement system. Range of displacement range: 0～10mm.
2. Verification and calibration of shaft vibration: Verify and calibrate the dynamic amplitude-frequency characteristics of eddy current sensor; Shaft vibration system.
Dynamic calibration range: 0～250um; 0～400um.
3. Calibration and calibration of transmitter: Check and calibrate the linear characteristics and sensitivity characteristics of the shaft displacement / vibration transmitter; Dynamic amplitude-frequency characteristics.
Bently990, 991; MX2034 of METRIX company, WK-142K and WK-142T of SHINKAWA company, etc
-0.6～0.6mm; -25～25mil; -1～+1mm; 0.5～2.0mm; 0.5～2.5mm; 0.5～3.5mm; 0.5～4.5mm.
4. Calibration and calibration of expansion difference: Check and calibrate the static linearity and sensitivity characteristics of eddy current differential expansion sensor; Differential expansion system.
5. Phase signal generating device with key: Achieve synchronization with the shaft vibration signal into the frame instrument calibration instrument system.
6. Signal source:
Check and calibrate the tile vibration, vibration speed, acceleration, shaft vibration, shaft displacement and rotation speed system;
Two independent zero-crossing sine wave signal outputs: The frequency and amplitude of the signal can be configured, with the maximum output signal frequency of 20KHz and the maximum output signal amplitude of 10000mv. Two independent negative bias voltage sine wave signal outputs: The bias voltage range is: 0 ~-22 VDC,
